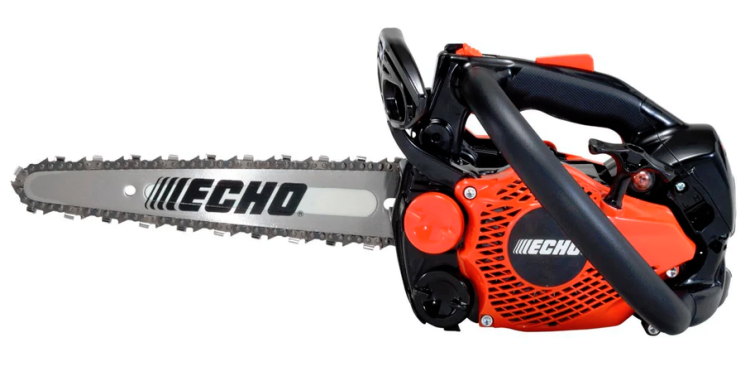

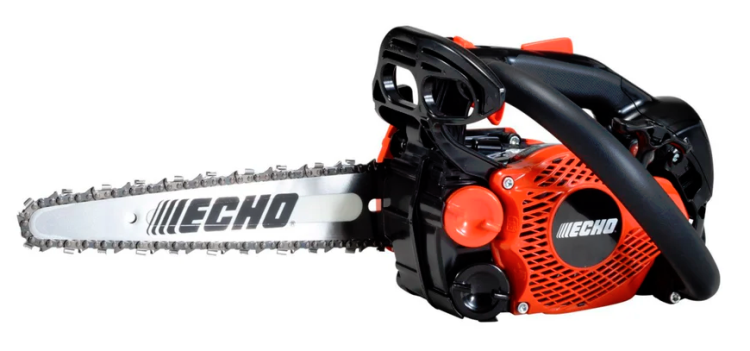

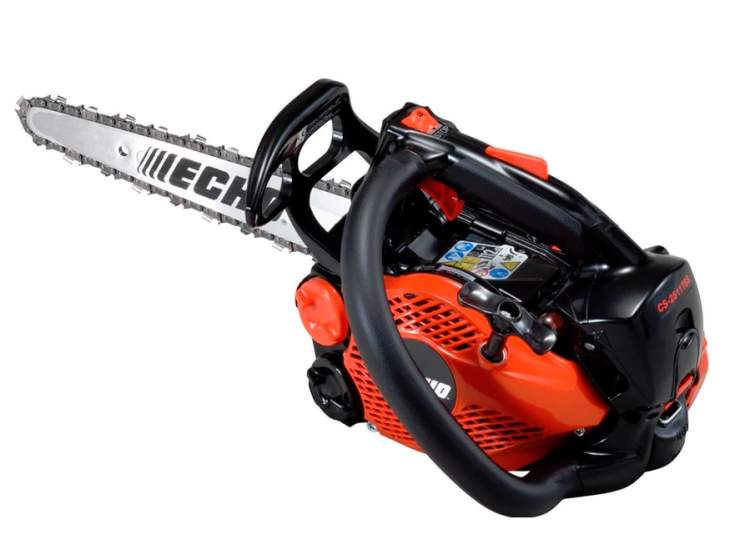

Echo Top Handle Chainsaw CS-2511TESC
Due to its industry leading power to weight ration and ergonomics, the CS-2511TES has become a favourite with arborists, carvers and foresters around the world. The CS-2511TES C features a carving bar, making it ideal for pruning.
The CS-2511TES top handle arborist chainsaw is ECHO’s lightest and most compact saw. Weighing just 2.3kg (dry weight w/o bar and chain) and with an ergonomic compact design, the saw is both highly manoeuvrable and can be used for long periods with little fatigue. At the same time, the engine produces 1.10kW giving the CS-2511TES a superior power-to-weight ratio.
Innovation is the essence of ECHO and although small, the CS-2511TES is packed with innovative features. Grouped controls and a new ergonomic top handle makes the CS-2511TES a great climbing saw. A swing-out lanyard ring is positioned for superior balance and easy climbing.
Features
Lightweight
Engineered to weigh less whilst retaining robust durability.
Ergonomics
Designed to maximise efficiency and comfort.
Power to weight ratio
Super light-weight design with exceptional power.
Technical Specifications
- Engine displacement (cm³) 25.0
- Output (kw) 1.11
- Output (ps) 1.51
- Dry Weight (kg) (undefined) 2.3
- Fuel Tank Capacity (ml) 190
- Chain Oil Tank Capacity (ml) 140
- Fuel Consumption At Maximum Engine Power (L/h) 0.68
- Priming Pump Yes
- Ignition System CDI
- Start Assist System ES-start
- Chain Brake Inertia
- Choke w/ Automatic Fast Idle Release Yes
- Chain Tensioner Side
- Saw Chain Pitch (inch) 1/4
- Guide Bar Gauge (inch) 0.050 (0.043)
- Applicable Bar Length (cm/inch) 25 / 10
- Sound pressure level (dB(A)) 99.7
- Sound power level (dB(A)) 110.3
- Vibration Front handle/Rear handle (m/s²) 3.5/4.0
Part Number: CS-2511TESC
Please call 01597 824 447 for prices.
