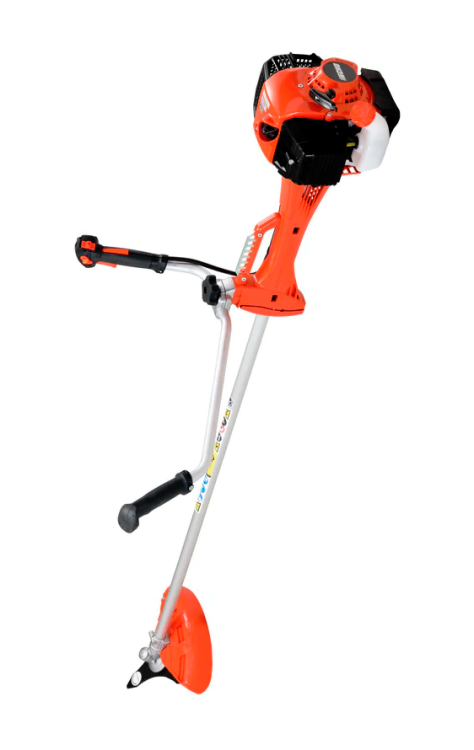

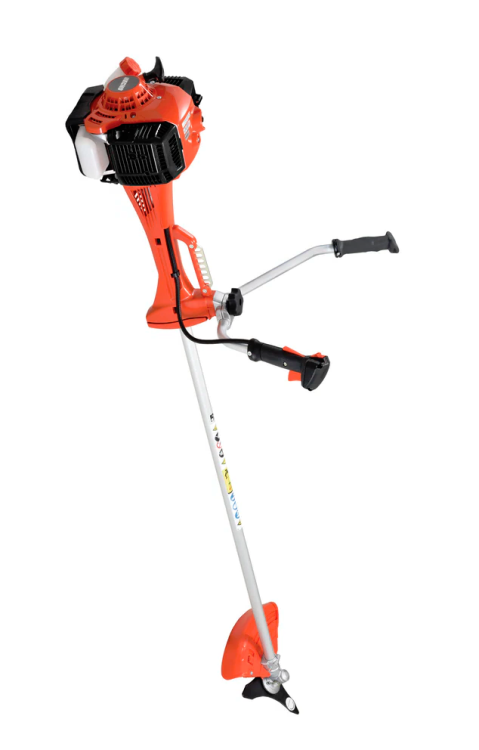

Echo Double Handled Trimmer and Brushcutter SRM-520ES/U
A highly durable, professional U-handle brushcutter, for the toughest applications. Whether you're working with a trimmer head or blade, you can depend on its power to get through the job with ease.
The ECHO SRM-520ES/U is designed to tackle the largest scale commercial jobs. That's why it features a huge 50.2cm³ engine, a heavy duty air filter and an advanced vibration reduction system. Whether you're working with a trimmer head or blade, you can depend on its power to get through the job with ease.
The ECHO SRM-520ES/U features an incredibly powerful 50.2cm³ professional grade engine for serious clearing power. A super anti vibration feature that utilises a 4 point mounting system ensures low vibrations so you can power through jobs in comfort.
Featuring ECHO's patented ES start technology for easy starting every time and a heavy duty air filter to protect against dust and debris. Every feature has been carefully crafted to reduce downtime and get you from one job to the next, hassle free.
Clip into the ergo pro harness in an instant and get straight to work. The harness supports the unit's weight and provides consistent range of movement for increased accuracy and decreased fatigue.
Features
Power and comfort.
The ECHO SRM-520ES/U features an incredibly powerful 50.2cm³ professional grade engine for serious clearing power. A super anti vibration feature that utilises a 4 point mounting system ensures low vibrations so you can power through jobs in comfort.
Features to depend on.
Featuring ECHO's patented ES start technology for easy starting every time and a heavy duty air filter to protect against dust and debris. Every feature has been carefully crafted to reduce downtime and get you from one job to the next, hassle free.
Ergo pro harness.
Clip into the ergo pro harness in an instant and get straight to work. The harness supports the unit's weight and provides consistent range of movement for increased accuracy and decreased fatigue.
Powerful
Features one of ECHO’s most powerful engines.
Ergonomics
Designed to maximise efficiency and comfort.
Low Vibration
Vibration reduced by ECHO anti-vibe technology.
Technical Specifications
- Engine displacement (cm³) 50.2
- Output (kw) 2.16
- Output (ps) 2.94
- Dry Weight (kg) 9.0
- Fuel Tank Capacity (ml) 690
- Fuel Consumption At Maximum Engine Power (L/h) 1.23
- Carburettor Diaphragm
- Start Assist System ES-start
- Drive shaft diameter (mm) 8.0
- Main pipe diameter (mm) 28.0
- Gear reduction ratio 1.33
- Standardised Nylon Head DS-5 M10L
- Standardised Nylon Head (Item Number) X047-000221
- Standardised Metal Blade 3-cutter metal blade
- Standardised Metal Blade (Item Number) P021-014320
- Vibration Left handle/Right handle (m/s) Metal Blade 3.4 / 3.4
- Vibration Left handle/Right handle (m/s) Nylon head 3.0 / 2.7
- Sound power level (dB(A)) Blade/Nylon head 113.2 / 111.6
- Sound pressure level (dB(A)) Blade/Nylon head 98.2 / 97.6
- CO² (g/kW·h) 1 825
1. This CO² measurement results from testing a (parent) engine representative of the engine type (engine family) over a fixed test cycle under laboratory conditions and does not imply or express any guarantee of the performance of a particular engine.
X-Series
X-Series means ECHO's best-in-class products. More power, lighter weight and performance that will noticeably increase your productivity. Designed for professionals who demand the best and highest quality tools.
X-Series engines make this line-up exceptional. They offer a revolutionary combination to get jobs done faster with less fatigue.
Part Number: SRM-520ES/U
Please call 01597 824 447 for prices.
