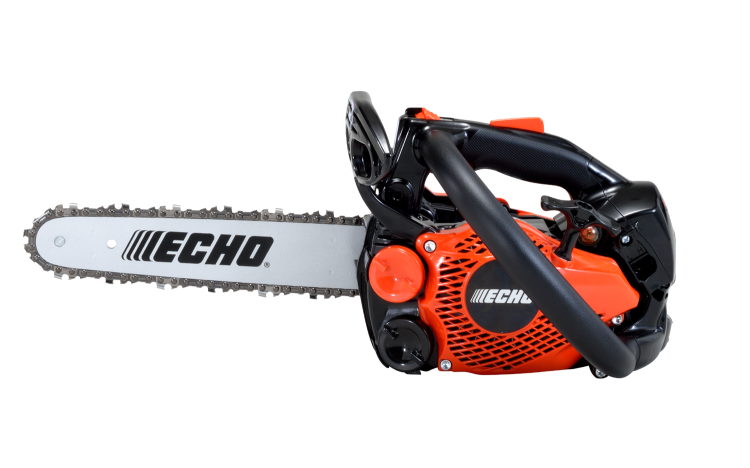

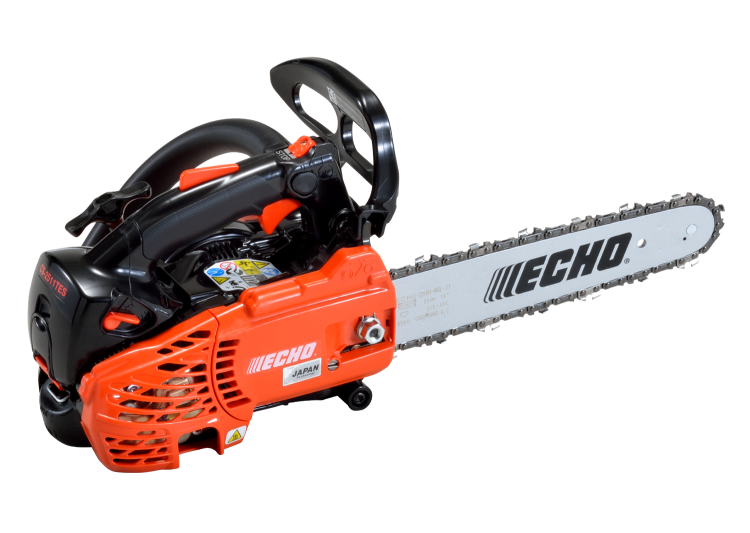

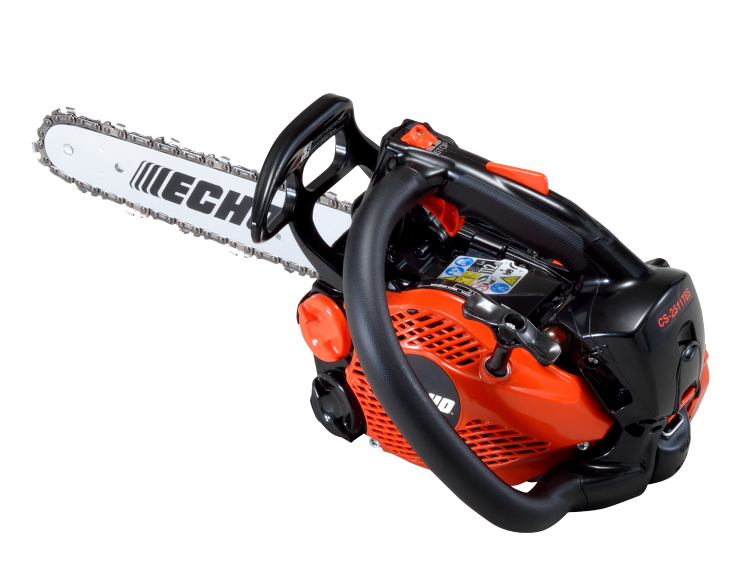

Echo Top Handle Chain Saw CS-2511TES

Compact, lightweight and widely considered as the best top handle petrol chainsaw on the market, the ECHO® CS-2511TES top handle saw has become a favourite for the arborist, climbers and foresters from around the world.

The CS-2511TES top handle arborist chainsaw is ECHO’s lightest and most compact saw. Weighing just 2.3kg (dry weight w/o bar and chain) and with an ergonomic compact design, the saw is both highly manoeuvrable and can be used for long periods with little fatigue. At the same time, the engine produces 1.10kW giving the CS-2511TES a superior power-to-weight ratio.

Innovation is the essence of ECHO and although small, the CS-2511TES is packed with innovative features. Grouped controls and a new ergonomic top handle makes the CS-2511TES a great climbing saw. A swing-out lanyard ring is positioned for superior balance and easy climbing.

Features

Lightweight

Engineered to weigh less whilst retaining robust durability.

Ergonomics

Designed to maximise efficiency and comfort.

Power to weight ratio

Super light-weight design with exceptional power.

Technical Specifications

Engine displacement (cm³) 25.0
Output (kw) 1.11
Output (ps) 1.51
Dry Weight (kg) (undefined) 2.3
Fuel Tank Capacity (ml) 190
Chain Oil Tank Capacity (ml) 140
Fuel Consumption At Maximum Engine Power (L/h) 0.68
Priming Pump Yes
Ignition System CDI
Start Assist System ES-start
Chain Brake Inertia
Choke w/ Automatic Fast Idle Release Yes
Chain Tensioner Side
Saw Chain Pitch (inch) 3/8
Guide Bar Gauge (inch) 0.50
Applicable Bar Length (cm/inch) 25/10
Sound pressure level (dB(A)) 99.7
Sound power level (dB(A)) 110.3
CO² (g/kW·h) 961
Vibration Front handle/Rear handle (m/s²) 3.5/4.0

X-Series

X-Series means ECHO's best-in-class products. More power, lighter weight and performance that will noticeably increase your productivity. Designed for professionals who demand the best and highest quality tools.

X-Series engines make this line-up exceptional. They offer a revolutionary combination to get jobs done faster with less fatigue.
